instrumentation

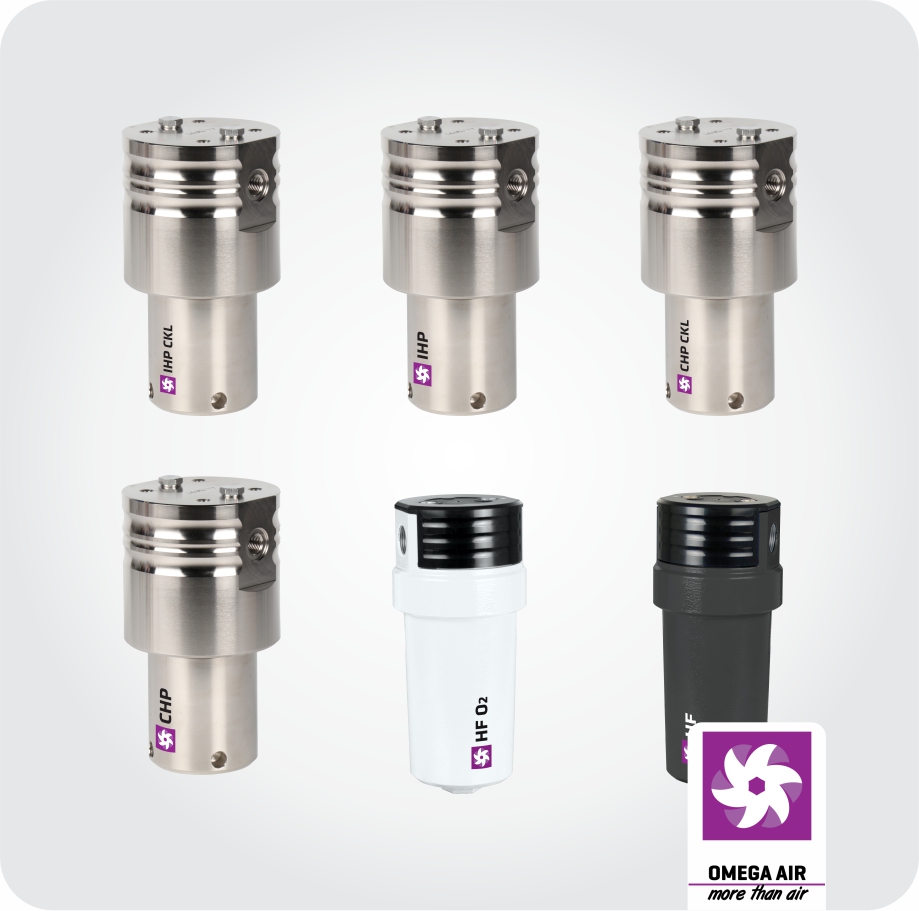

Compressed Air / Gas Filters
The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 25 barg.
| Types: | Filter units for air and gas filtration as per customer requirement. |
|---|---|
| Solid Particle: | Class 1 of ISO 8573-1 |
| Oil Content: | < 0.005 mg/m³ (Class 0/1 of ISO8573-1) |

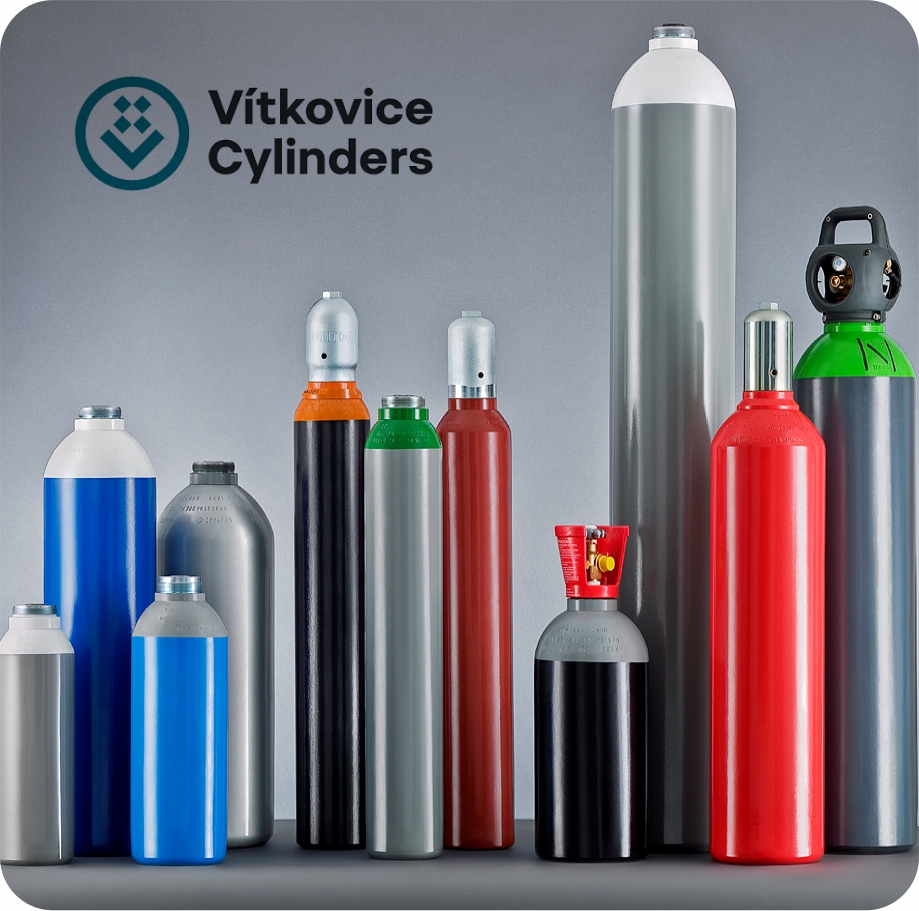

High Pressure Cylinders
| Water Capacity: | 0.8 ltr to 260 ltr |
|---|---|
| Pressure: | up to 450 bar |

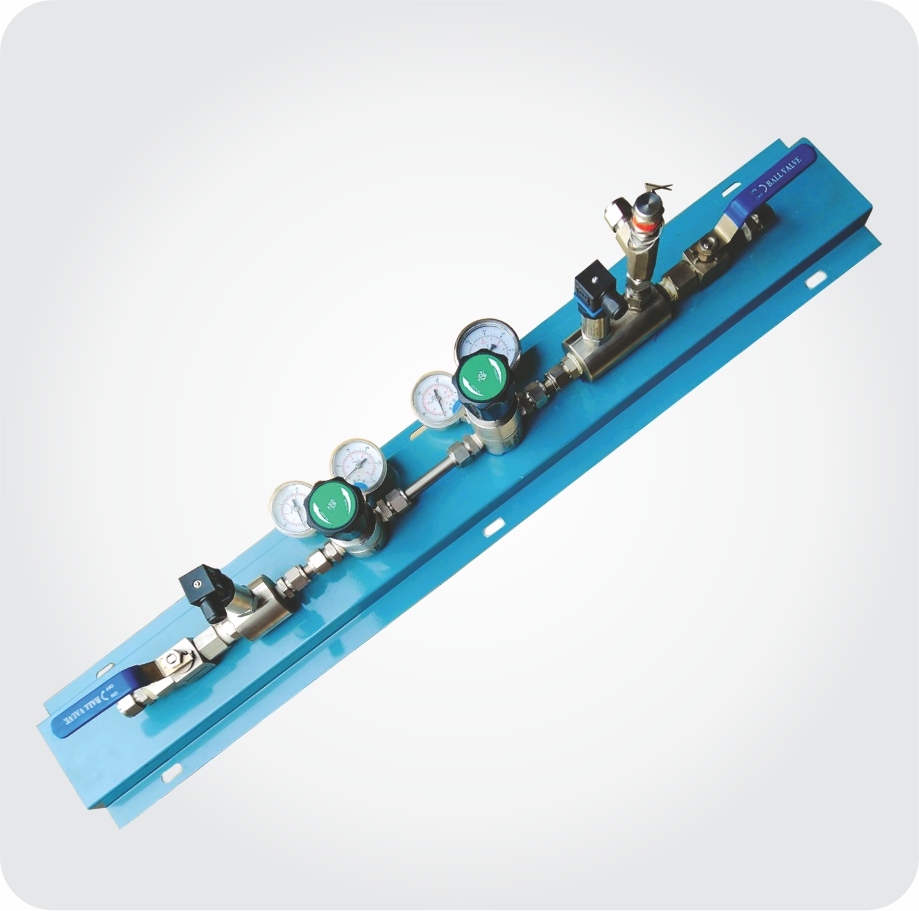

High Pressure Reducer Unit (Anti Freez Version)
The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 25 barg.
| Inlet Pressure: | Inlet Pressure: 150 – 500 bar |
|---|---|
| Control Pressure: | Control Pressure: 0 – 10 bar |
| Properties: | – Integrated heating at inlet to prevent icing. |
| – Built to withstand -40 °C temperature. | |
| – Inlet and outlet pressure sensors. | |
| – Integrated heating at inlet to prevent icing. | |
| – Built-in safety valve. | |
| – Pressure gauges. | |
| – Inlet manual valve. |

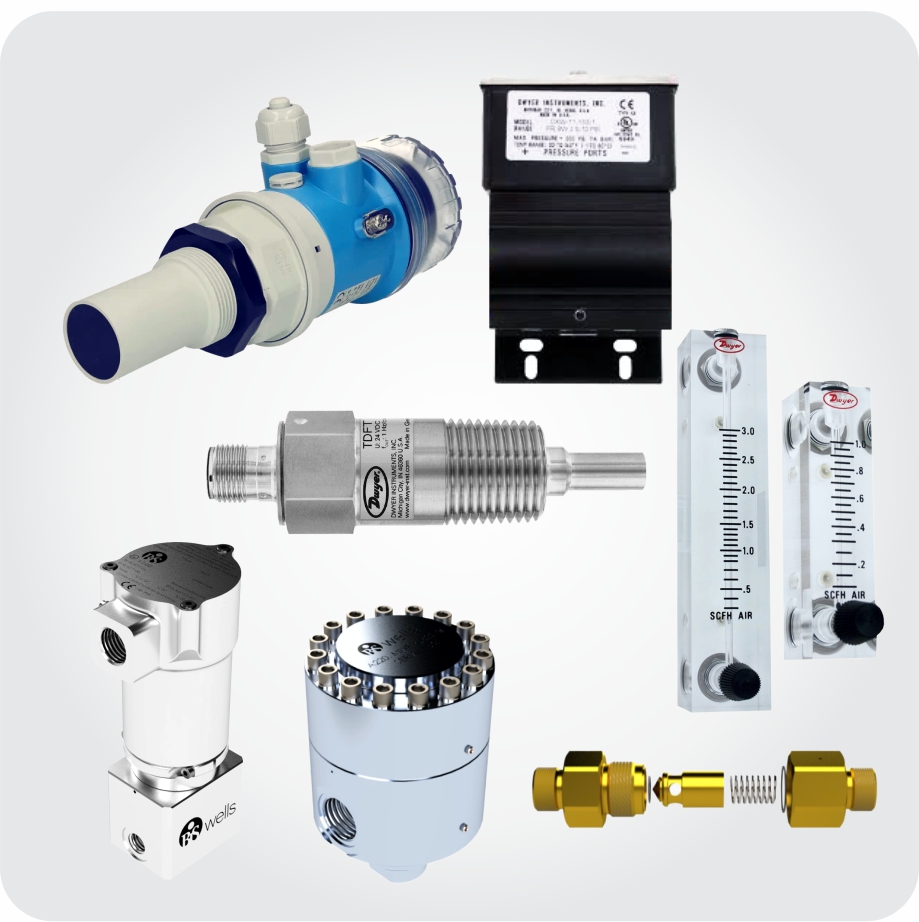

Instrument & Controls
| Oxygen Service Valves | Level Indicators |
| Hydrogen Valves | Flow Transmitter |
| Solenoid Vavles | Differential Pressure Switch |
| Ultrasonic Level Sensors |

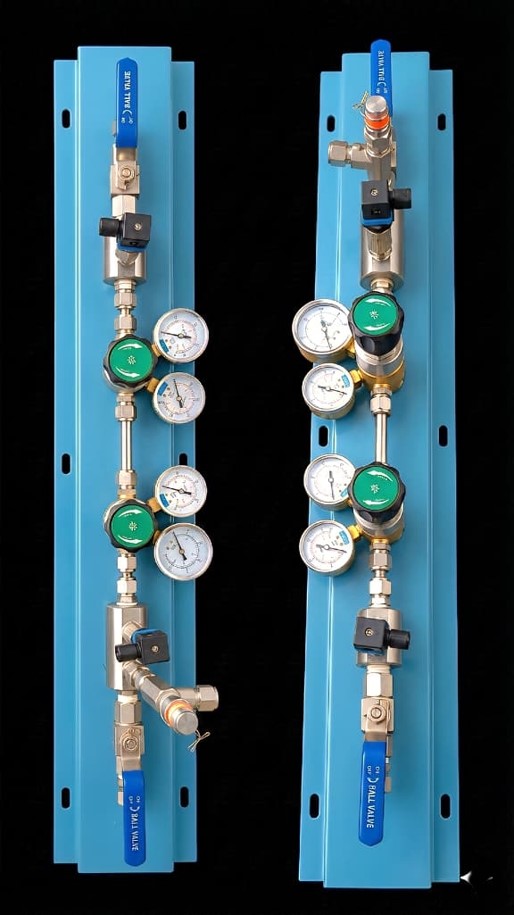

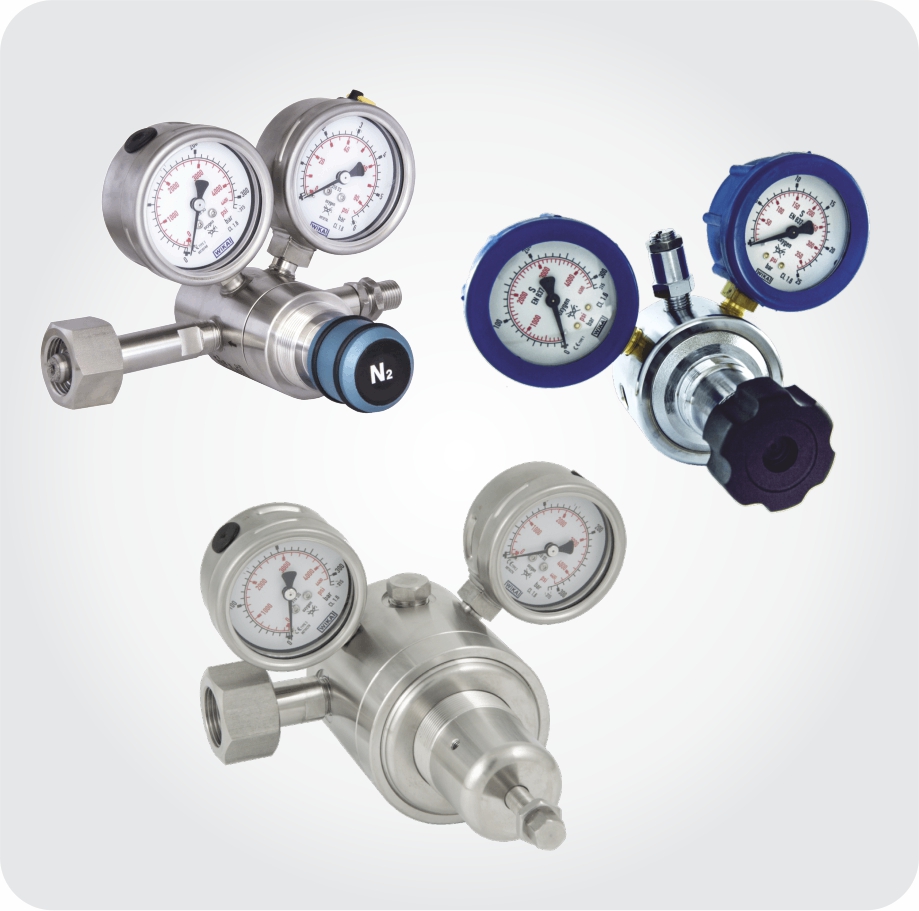

Pressure Regulator
| Inlet Pressure Range: | 10 – 420 bar |
|---|---|
| Control Pressure: | 0-10 bar / 0-50 bar / 0-100 bar |
| Gauges | With inlet / outlet gauges. |

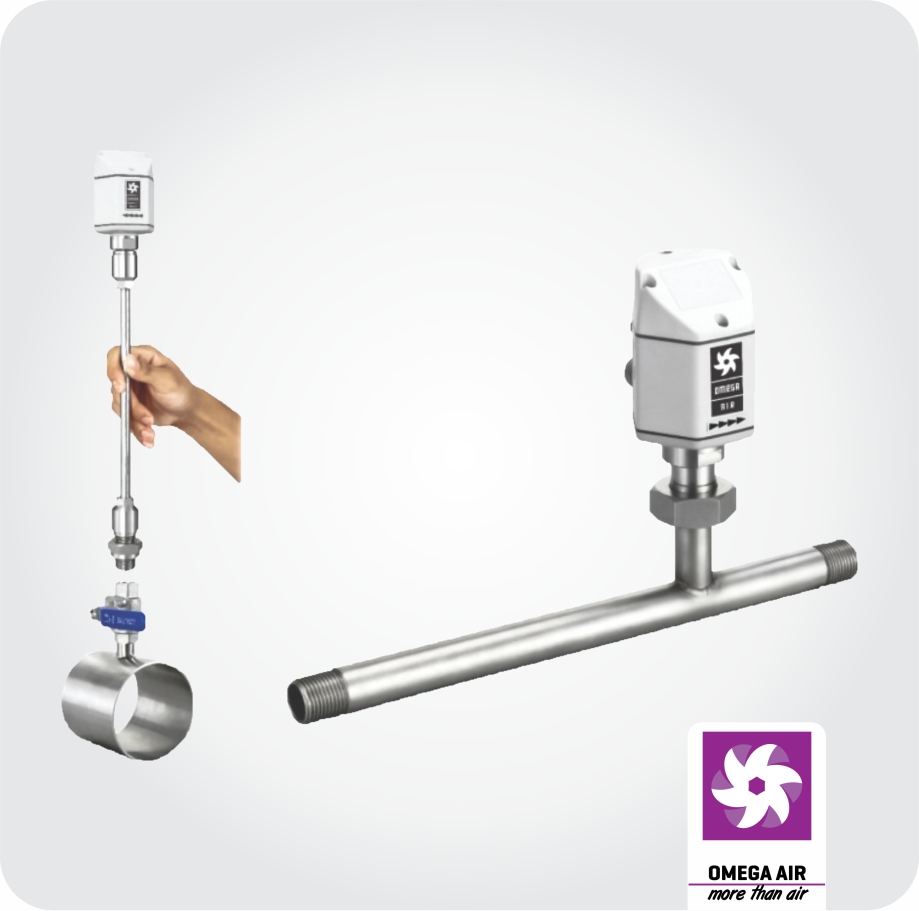

Thermal Mass Flow Sensor
| Pressure Range: | 0 – 50 bar |
|---|---|
| Accuracy: | 1.5% of reading (+0.3% of full scale) |
| Output Signal: | 4 – 20 mA (3 wire), Modbus/RTU, Modbus/TCP |
| Operating Media Temp: | -30 °C to +140 °C |
| Protection: | IP65 |

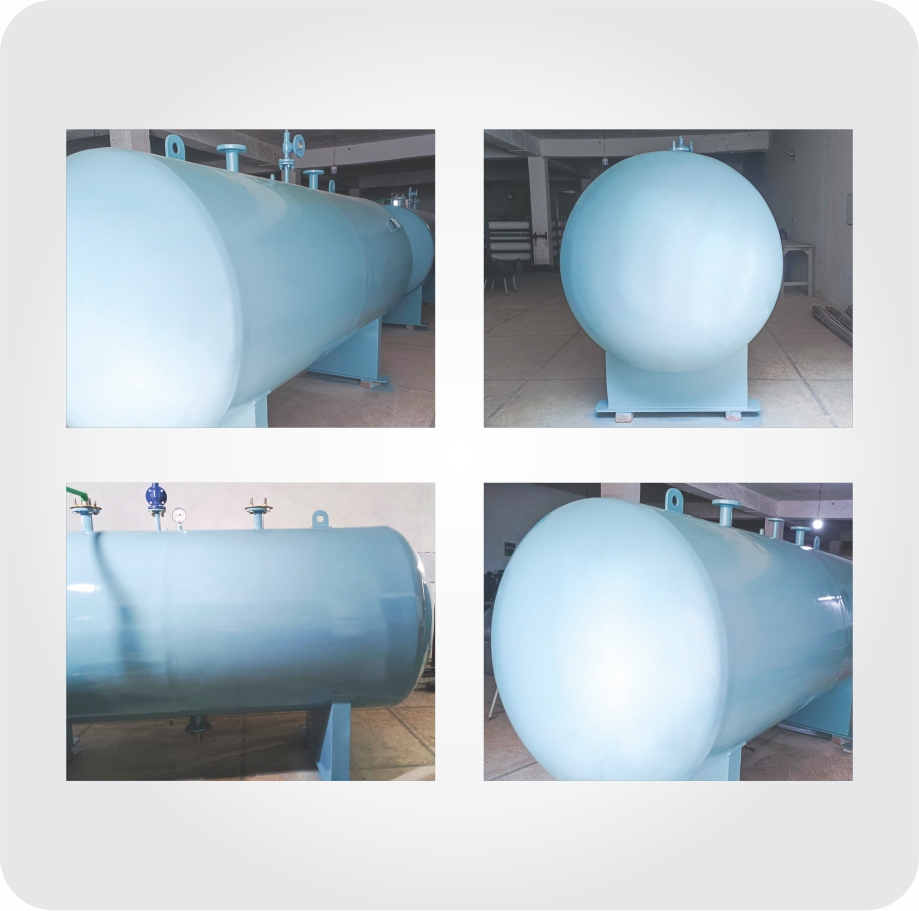

Pressure Vessel
| Pressure Range: | 5 – 15 bar |
|---|---|
| Capacity: | 200 to 10,000 liters |
| Paint: | Painted, Galvanized as per customer requirement. |
| With inlet/outlet valves, gauge, pressure sensor. |

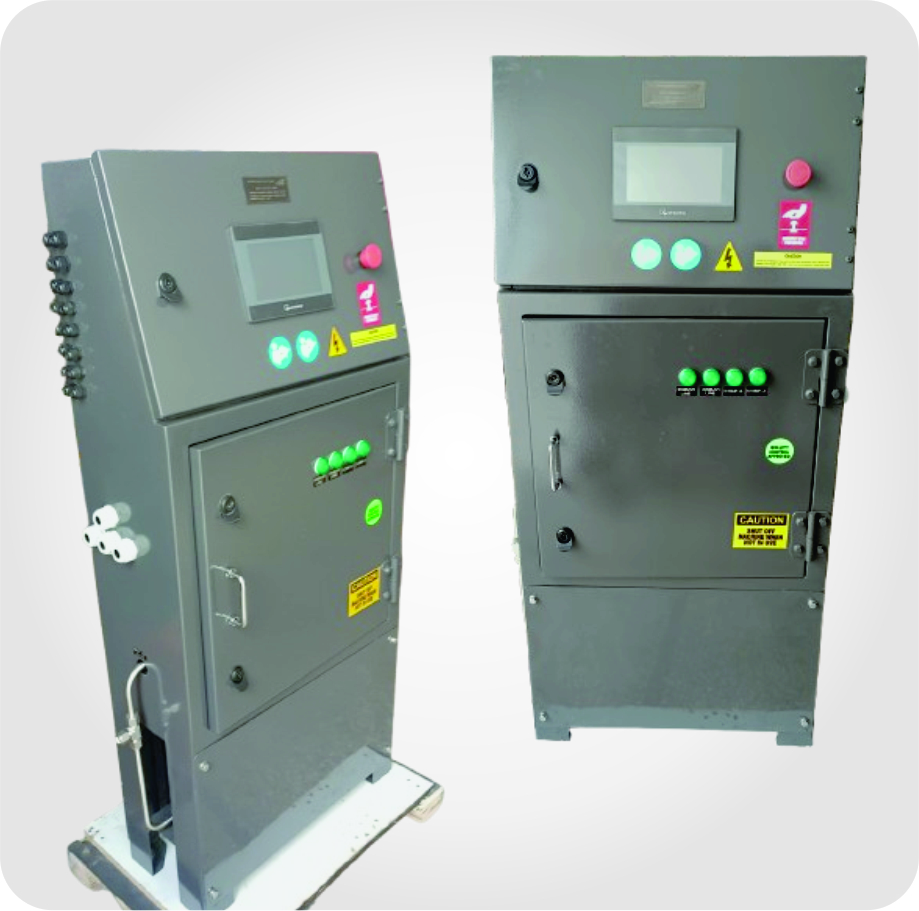

Priority Filling Panel (Multi Pressure)
| Pressure Range: | upto 500 bar |
|---|---|
| Filling Range: | 3 x Different filling pressure simultaneously. |
| Control Method: | Fully Automatic Control |

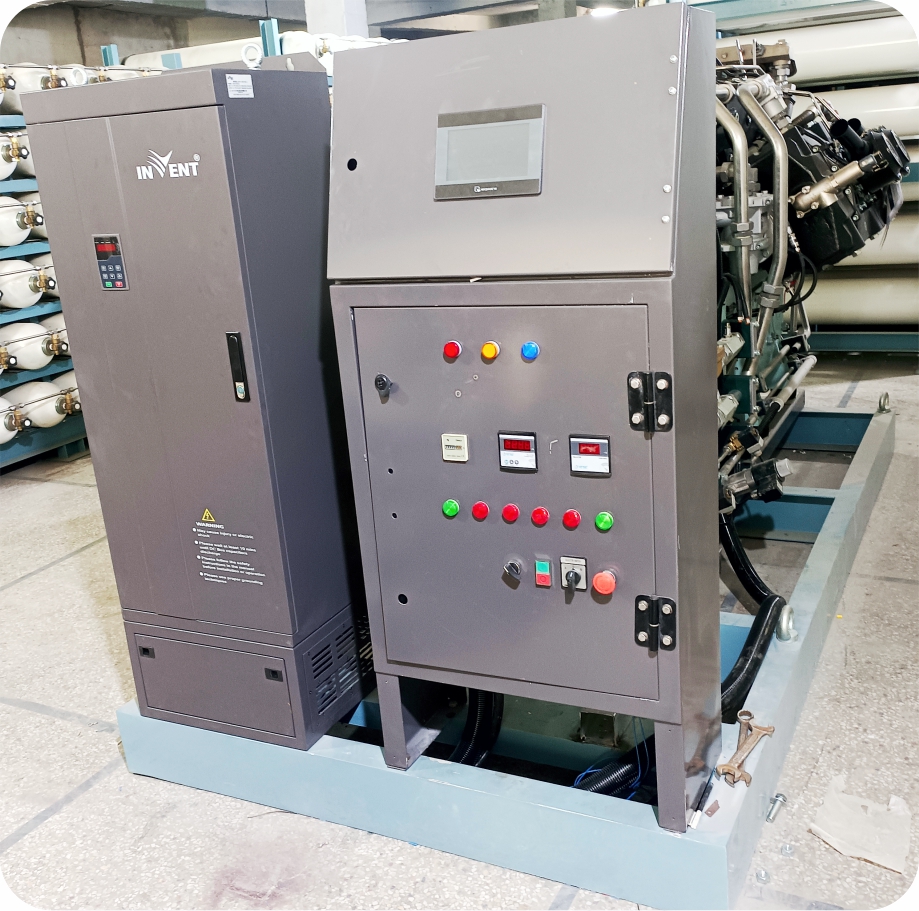

Control Panels
Anti Freeze Regulators
High Pressure Reducer Unit (Anti Freeze Version)
| Inlet Pressure: | Inlet Pressure:150 – 500 bar |
| Control Pressure: | Control Pressure:0 – 10 bar |
|
– Integrated heating at inlet to prevent icing. – Built to withstand -40 °C temperature. – Inlet and outlet pressure sensors. – Built-in safety valve. – Pressure gauges. – Inlet manual valve. |
Flow Sensors

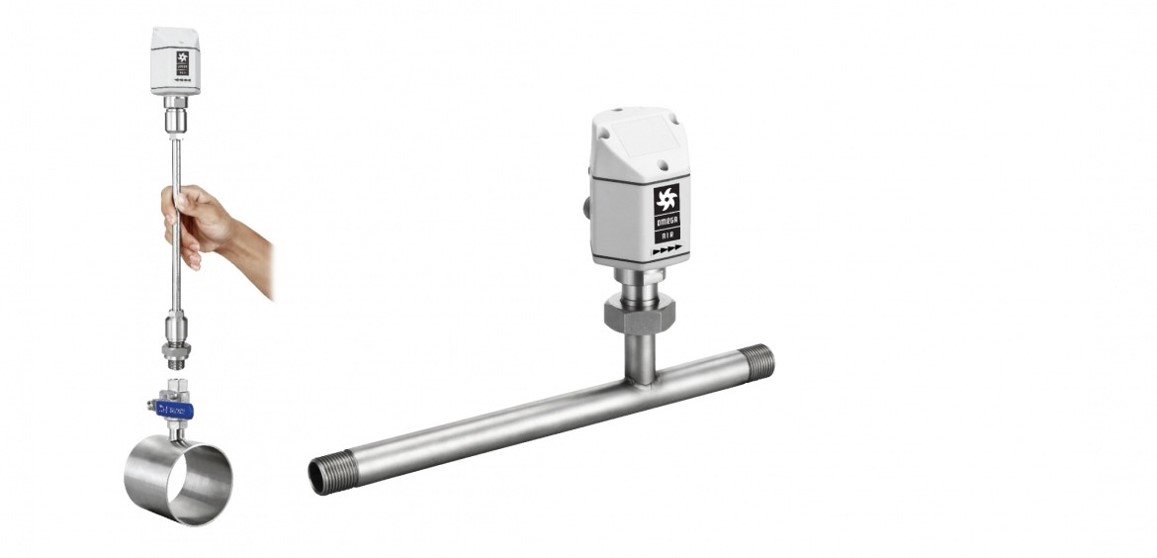

Thermal Flow Sensor
Thermal mass flow sensor OS 401/OS421 is suitable for consumption measuring in different compressed air systems. The version with a display shows the volumetric flow and the total compressed air consumption. The keyboard enables setting of tube diameters and consumption counter. Various settings such as gas type, flow unit, reference standards, can also be set.
Total flow – High accuracy and reliable measurements
- DN25-DN250 – tube diameters
- Easy process monitoring – Effective and inexpensive measurements
Leakage Detector

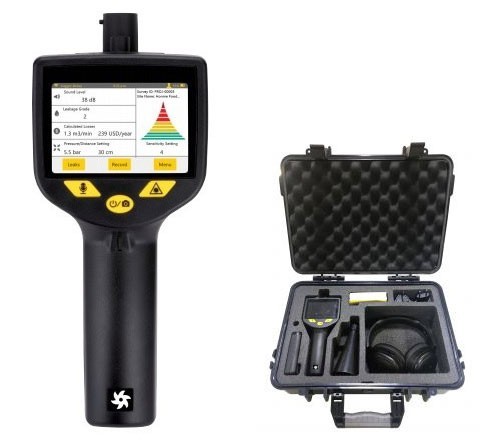

Ultrasonic Leak Detector
Portable ultrasonic leak detector OS 531 helps users quickly find and record leakages in compressed air or any gas systems.
The built-in touch screen helps the user to easily operate and detect leaks.
Photographing and voice recording make leak surveys even more flexible and efficient. Portable ultrasonic leak detector OS 531 is designed to work with LMS (Leak Management System) to enable companies to properly manage their leakage detection and repair activities, either through cloud based service or local server installation.
Characteristics
- Touch Screen – 3,5” color LCD touch screen
- Photographing leak parts – Build in camera to take photo of leak locations
- Mass Storage – Almost unlimited memory for leak records, photos and voice recording
- Laser – Pinpoints locations with laser pointer
- Loss calculate – Calculates air loss in m³/h and in local currency
Purity Analyzer

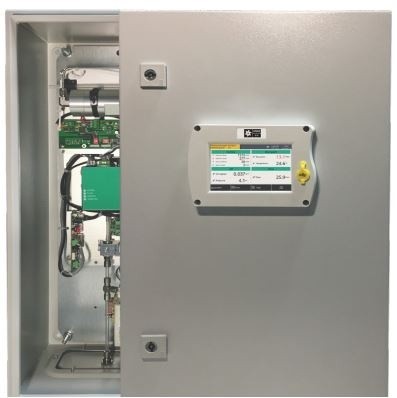

Purity Analyzer
Stationary compressed air purity analyzer OS 601 combines three major quality measurements into a single wall mountable device. Optimized to be used as Plug & Play system, the OS 601 helps users to identify the air quality at a glance. The compressed air purity analyzer OS 601 combines the latest sensor technology and a time-saving setup into a one of its kind multi-tool. Mount it, power it, connect it and measure.
Characteristics
- All in one – Dew point, particle, oil vapor and pressure
- Compact design – Can be installed anywhere
- Precision – Accurate measurements
