Valves

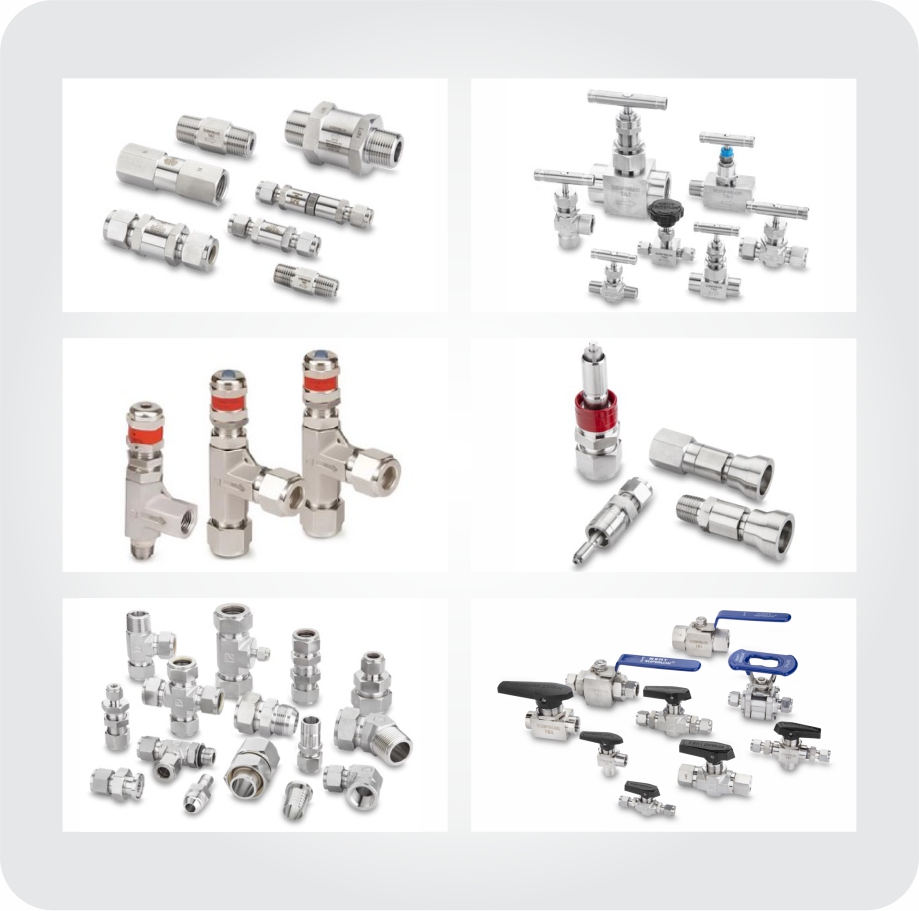

High Pressure Valves & Accessories
The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 25 barg.
Ball Valve | Connectors |
Check Valve | Tee |
Safety Valve | Elbows |
Needle Valve |

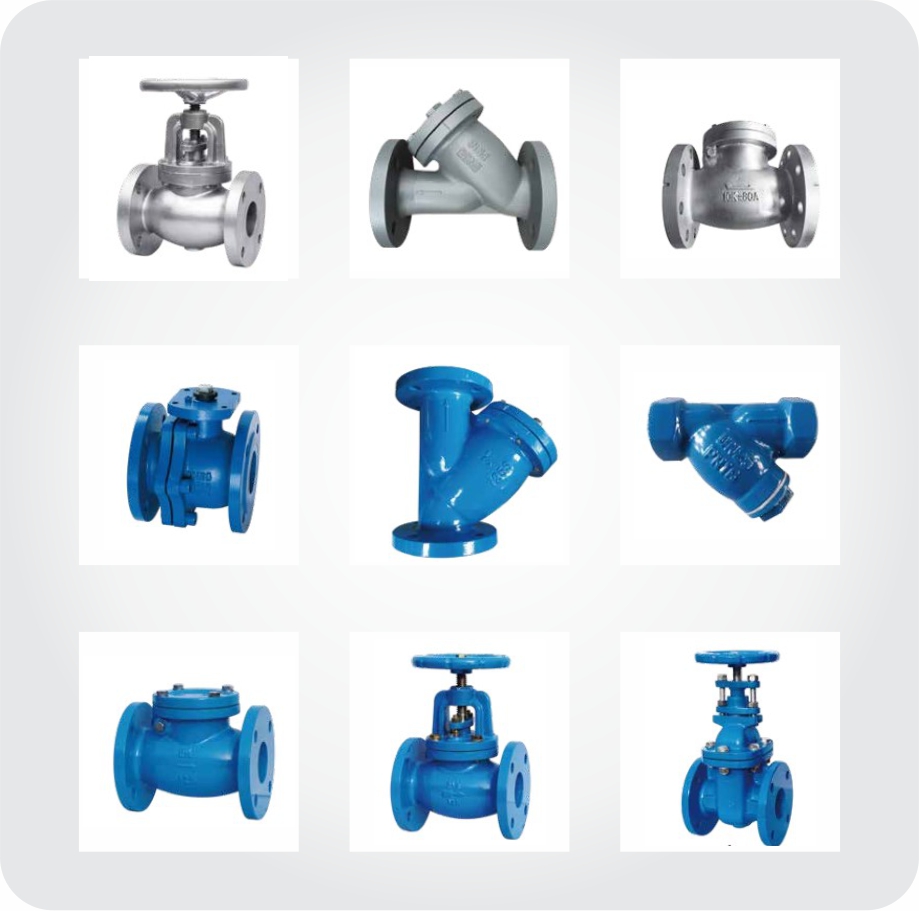

Low Pressure Valves & Fittings (API – ANSI Standard)
The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 25 barg.
| Gate valve | Electric ball valve |
| Ball valve | Globe valve |
| Check valve | Y-Strainer |
| Flame arrestor |

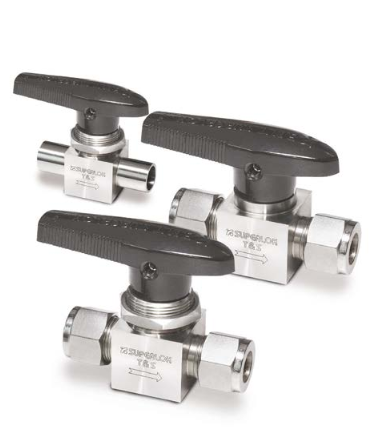

Ball Valve
Ball and plug valves provide reliable, leak-free operation and precise flow control for demanding industrial and instrumentation applications. Manufactured from high-quality materials, these valves withstand high pressure, vibration, and temperature extremes while ensuring long-lasting performance. Ideal for oil and gas, chemical processing, laboratories, and other critical systems, Superlok valves deliver durability, safety, and consistent operation across a wide range of configurations.
Features
- Pressure Rating up to 6000psig (412 bar) @100°F (37°C)
- Temperature Range -10°F to 400°F (-23°C to 204°C)
- Suitable for throttling
- Simple design with one piece body
- 316 stainless steel body materials
- Panel mountable
- Variety of end connections available
- Straight through flow path
- Replaceable plug assembly
- Easy to clean and maintain

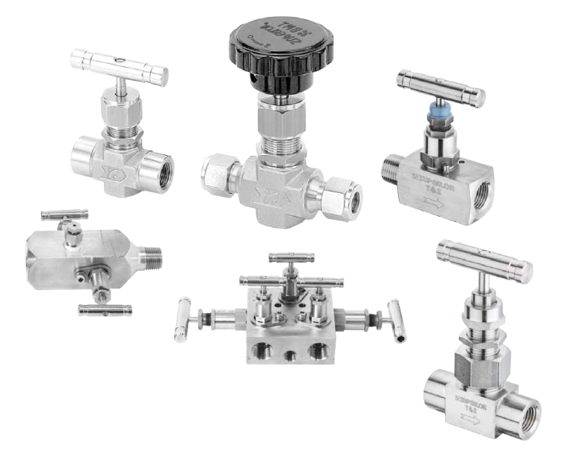

Needle Valve
Stainless Steel Needle Valves for Precision Flow Control
Stainless steel needle valves are designed to deliver precise and reliable flow control for fluid and gas systems operating under high pressure. These instrumentation grade needle valves are ideal for applications where accurate metering, tight shutoff, and long term durability are critical.
Manufactured from high quality 316 stainless steel, needle valves offer excellent corrosion resistance and dependable performance in demanding industrial, laboratory, and process control environments. Each valve is engineered to provide smooth operation, leak tight sealing, and consistent flow regulation across a wide range of pressures.
Key Features of Needle Valves
- Precision flow control for accurate adjustment in critical processes
- 316 stainless steel construction for strength and corrosion resistance
- High pressure capability for industrial and instrumentation applications
- Leak tight performance to protect system integrity
- Multiple end connection options including tube fittings, NPT, and quick connect configurations
Needle Valve Applications
Stainless steel needle valves are commonly used in:
- Instrumentation and analytical systems
- Oil and gas and chemical processing
- Semiconductor and laboratory environments
- General industrial fluid and gas handling systems
Designed for reliability and control, needle valves provide operators with confidence in precise flow regulation, even in high pressure and high purity applications. Whether used for metering, isolation, or throttling, these stainless steel needle valves deliver consistent performance you can depend on.

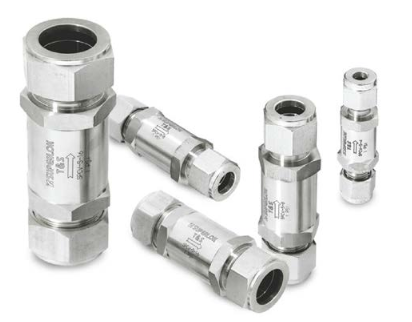

Check Valves
Reliable Flow Control with Check Valves
Check valves are engineered to provide dependable precise flow control in high pressure fluid and gas systems. Check valves prevent backflow and maintain proper flow direction,
Designed for durability, safety, and long service life, check valves help ensure stable system performance while safeguarding critical downstream components in demanding industrial applications.
Features
- Fixed cracking pressure.
- Pressure rating up to 6000 psig @70°F (21°C)
- Temperature rating up to 375°F (191°C) with Viton© O-Ring.
- Variety of end connections available.
- Every valve is factory tested.

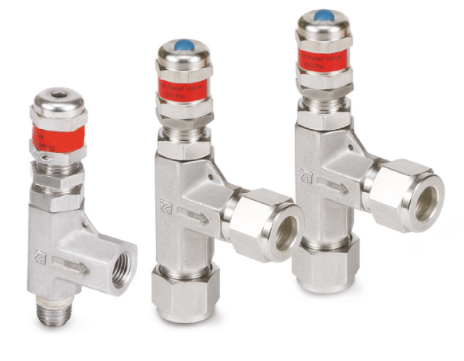

Relief Valve
Reliable Protection with Relief Valves
Relief valves are engineered to provide dependable protection in high pressure fluid and gas systems.
Relief valves regulate pressure and protect equipment from overpressure conditions.
Designed for durability, safety, and long service life, valves help ensure stable system performance while safeguarding critical downstream components in demanding industrial applications.
Features
- Compact design.
- Cracking pressure adjustable externally.
- Lock wire feature secures a given pressure setting.
- Every valve is factory tested.
Technical Data
- Maximum working Pressure: 6000 psig (413 bar)
- Cracking Pressure Range: 225~6000 psig (15.5~414 bar)
- Orifice size: 4.8mm
- Multiple pressure ranges available.

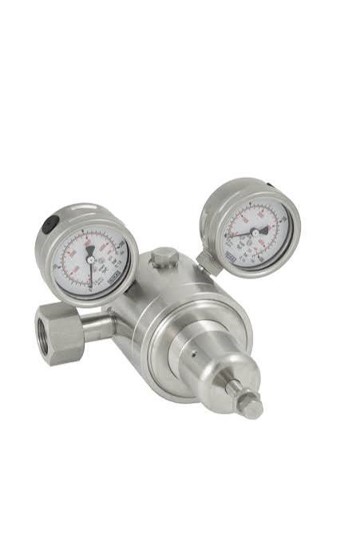

Pressure Regulators
Pressure Regulating Valve:
Pressure regulation is vital for all media flowing in pipelines. Pressure regulating valves include pressure sustaining, reducing and relieving valves to provide safe and efficient operating conditions and automatically respond to changes to maintain the set pressure. Pressure sensing valves react to changes in pressure and by means of an integral valve, provide pneumatic signalling or direct control over a process. Filters are used before pressure regulating valves to protect them from fluid borne debris and contamination that would affect their operation.
- Pressure inlet: 50 – 500 bar
- Control pressure: 0 – 10 bar
- Gauge: inlet & outlet

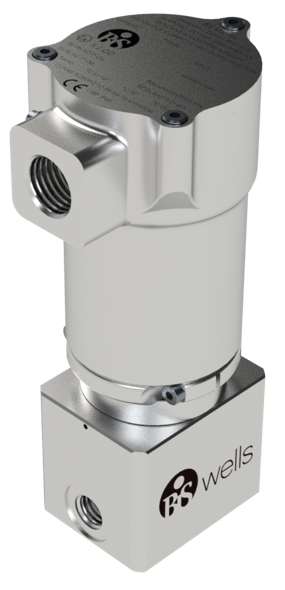

Solenoid Valve
Solenoid Valves are available in 2/2 Normally Open (NO), 2/2 Normally Closed (NC) and 3/2 Universal configurations. Valves are actuated by our industry leading solenoid coils and have been designed and optimised to give the highest force with minimal power consumption. All our coils are IP68 rated as standard and are both ATEX and IECEx certified for use in hazardous areas.
Coils are offered in numerous configurations including a range of voltages, powers, conduit connections and also, in Automatic, Manual reset and Manual override versions. 2/2 and 3/2 valves can be offered with both balanced poppets and pressure biased versions.
Our Solenoid Valves have a Maximum Working Pressure of up to 6,500 Psi. Valves are offered in Aluminium Alloy as standard but can be manufactured from Stainless Steel, Brass and Aluminium Bronze. Valves range from ¼” up to ¾” ports.
Most of our Solenoid Valves are suitable for both pneumatic and hydraulic applications, please see our overview datasheets for suitability. As standard valves are offered with Nitrile or Viton seals however please contact us for medium compatibility as other elastomeric materials can be offered.
All our Solenoid Valves can be manufactured specially for Oxygen use, please contact us for more information.

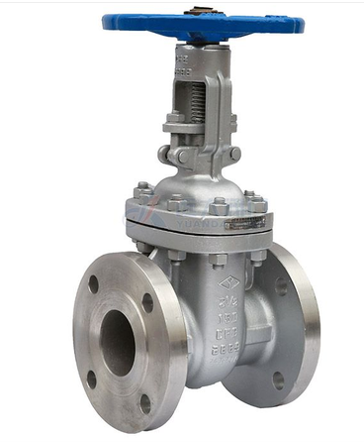

Gate Valve
API600 Cast Steel OS&Y Gate Valve
- Gate valves API 600
- Face to face ANSI B16.10
- End flanges ANSI B16.5
- Butt weld ends ANSI B16.25
- Inspection and test API 598
ANSI Cast Iron Rising Stem
- Design and Manufacture: MSS SP-70
- Face to Face: ANSI B16.10
- Flange End: ANSI B16.1
- Test: MSS SP-70
API Stainless Steel Gate Valve
- Design and Manufacture: API 603
- Face to Face: ASME B16.10
- Flange End: ASME B16.5
- Test: API 598
